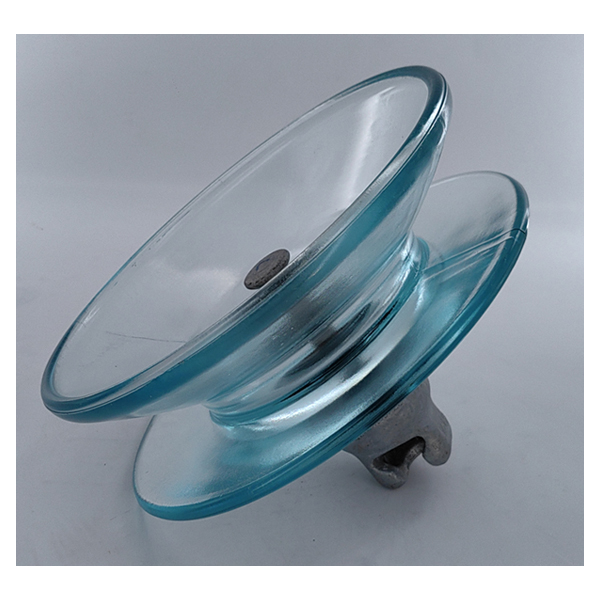

Double umbrella disk Suspension Insulators UG70B146/450D 16R

Dimensions
Diameter (D): 280mm
Spacing (H): 146mm
Creepage Distance: 450mm
Coupling Size: 16mm

Double umbrella disk Suspension Insulators UG70B146/450D 16R

Mechanical Values
Mechanical Failing Load: 70kN
Tension Proof: 35kN

Electrical Values
Dry Power-frequency Withstand Voltage: 80kV
Wet Power-frequency Withstand Voltage: 45kV
Dry Lightning Impulse Withstand Voltage: 120kV
Puncture Withstand Voltage: 130kV

Radio Influence Voltage Data
Test Voltage RMS to Ground: 10kV
Maximum RIV at 1000 kHz: 50μV

Packing and Shipping Data
Net Weight, Approximate: 6.3kg
