Dimensions
Diameter (D): 255mm & 280mm
Spacing (H): 146mm
Creepage Distance: 400mm & 450mm
Coupling Size: 16mm

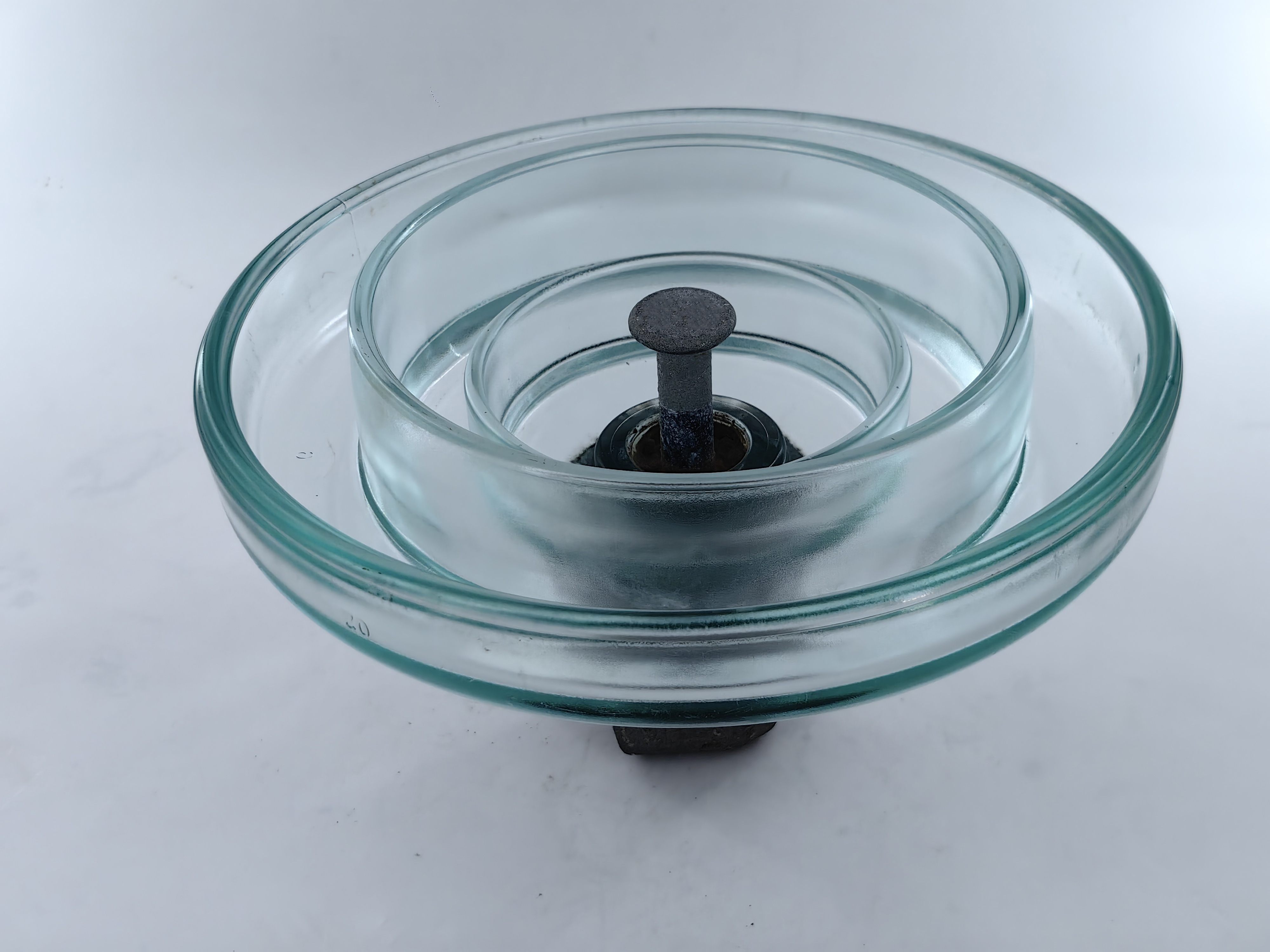

Glass Fog Profile Suspension Insulators LXHP-70 / U70BP/ U70BLP
Mechanical Values
Mechanical Failing Load: 70kN
Tension Proof: 35kN
Electrical Values
Dry Power-frequency Withstand Voltage: 80 & 82kV
Wet Power-frequency Withstand Voltage: 45 & 50kV
Dry Lightning Impulse Withstand Voltage: 120 & 125kV
Puncture Withstand Voltage: 130kV
Radio Influence Voltage Data
Test Voltage RMS to Ground: 10kV
Maximum RIV at 1000 kHz: 50μV
Packing and Shipping Data
Net Weight, Approximate: 4.8 & 5.4kg
