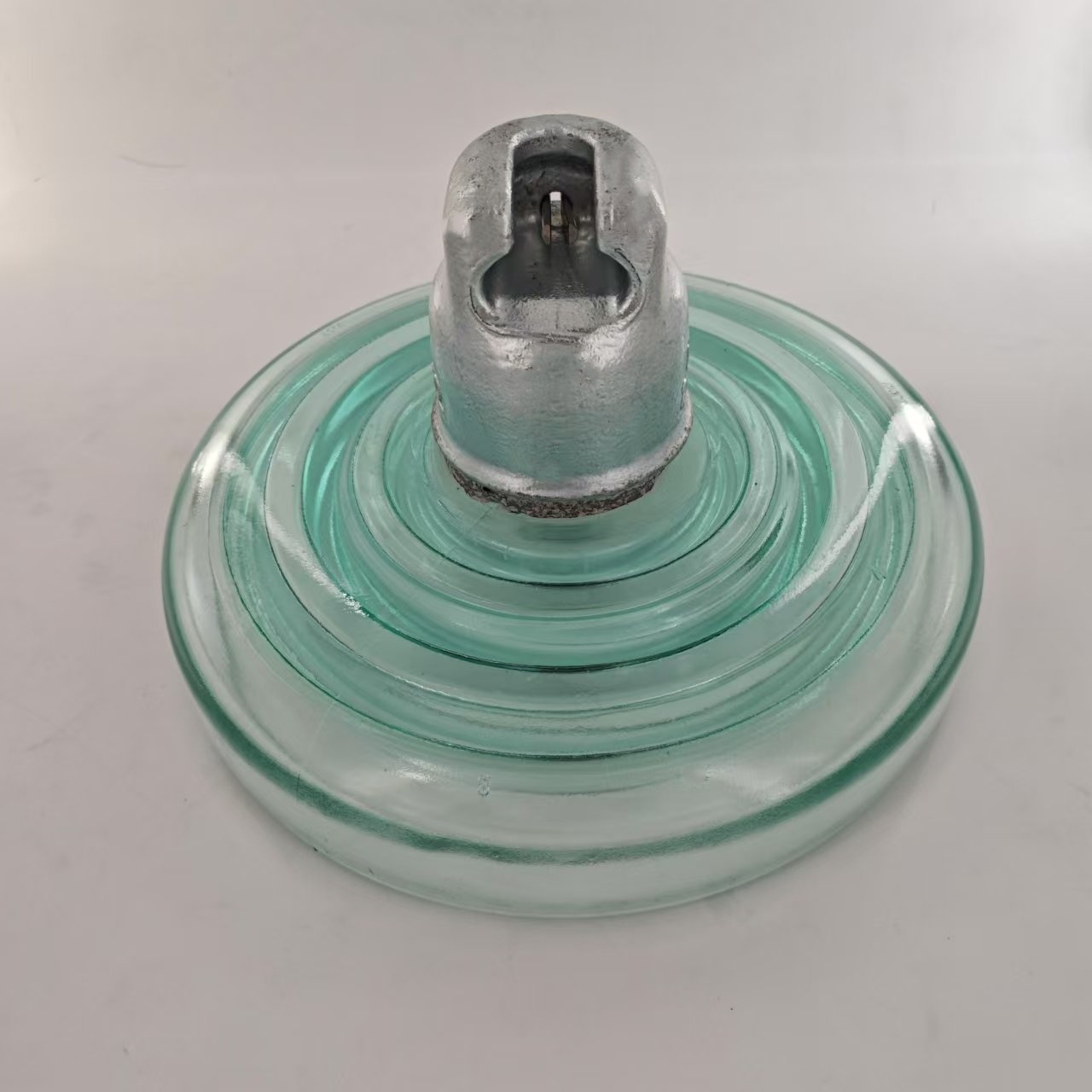

Glass Fog Profile Suspension Insulators U160BP / 155
Dimensions
Diameter (D): 320mm
Spacing (H): 155mm
Creepage Distance: 550mm
Coupling Size: 20mm
Glass Fog Profile Suspension Insulators U160BP / 155
Mechanical Values
Mechanical Failing Load: 160kN
Tension Proof: 80kN
Electrical Values
Dry Power-frequency Withstand Voltage: 90kV
Wet Power-frequency Withstand Voltage: 55kV
Dry Lightning Impulse Withstand Voltage: 140kV
Puncture Withstand Voltage: 130kV
Radio Influence Voltage Data
Test Voltage RMS to Ground: 10kV
Maximum RIV at 1000 kHz: 50μV
Packing and Shipping Data
Net Weight, Approximate: 9.0kg
