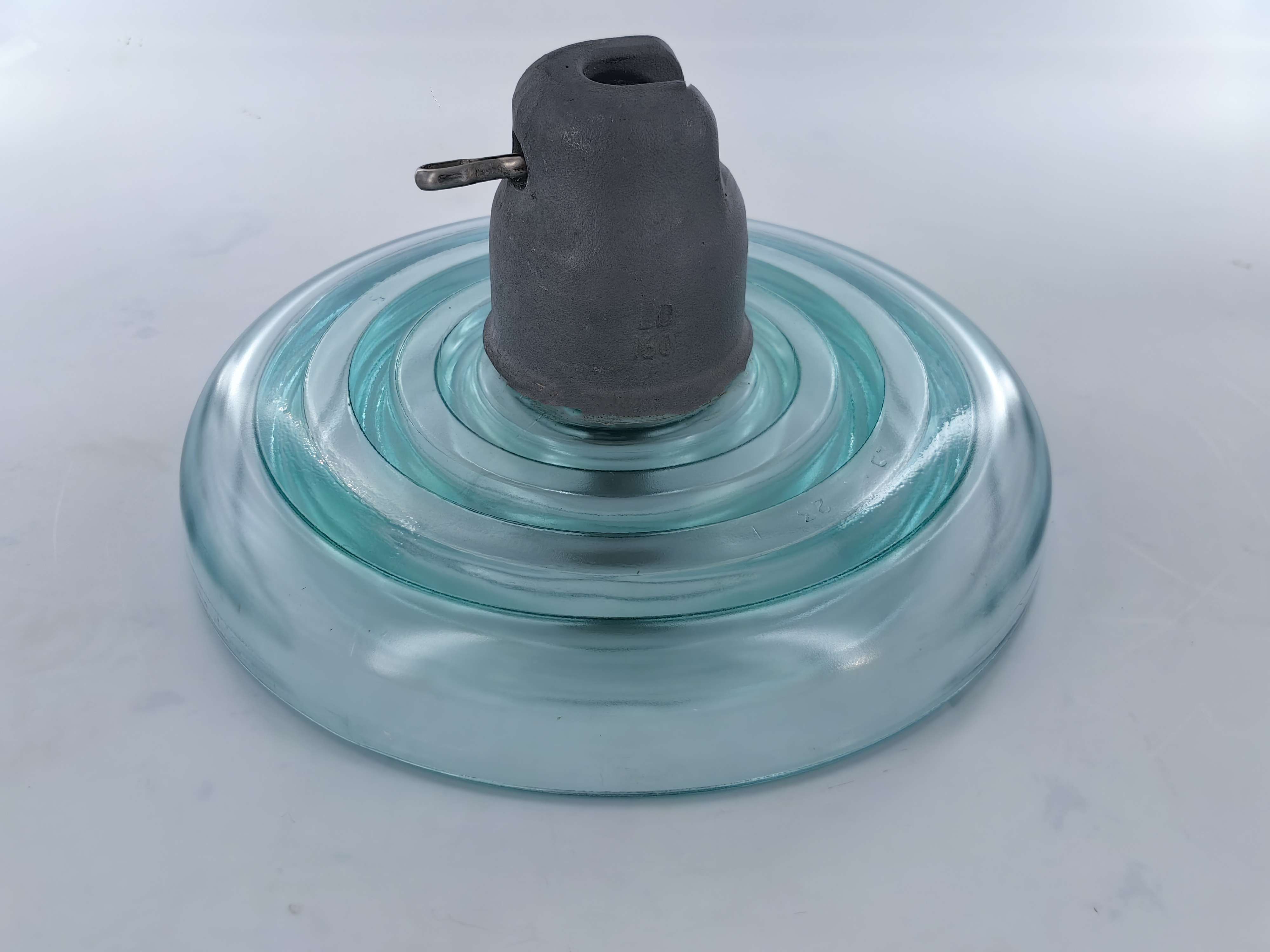

Glass Fog Profile Suspension Insulators U160BP/170
Dimensions
Diameter (D): 280mm
Spacing (H): 170mm
Creepage Distance: 450mm
Coupling Size: 20mm
Glass Fog Profile Suspension Insulators U160BP/170
Mechanical Values
Mechanical Failing Load: 160kN
Tension Proof: 80kN
Electrical Values
Dry Power-frequency Withstand Voltage: 85kV
Wet Power-frequency Withstand Voltage: 50 kV
Dry Lightning Impulse Withstand Voltage: 125 kV
Puncture Withstand Voltage: 130kV
Radio Influence Voltage Data
Test Voltage RMS to Ground: 10kV
Maximum RIV at 1000 kHz: 50μV
Packing and Shipping Data
Net Weight, Approximate: 7.2kg
