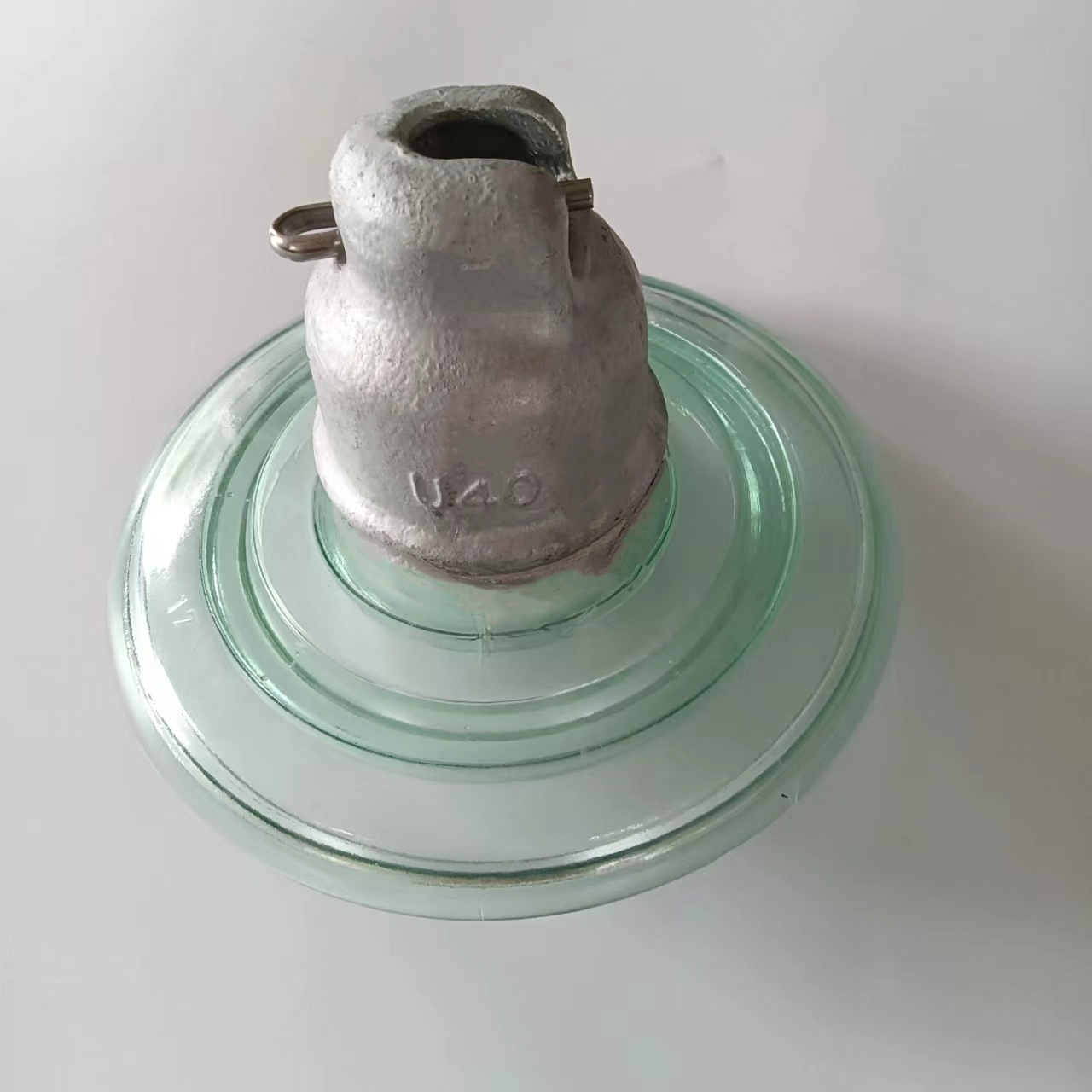

Glass Standard Profile Suspension Insulators LXP-40 / U40B

Dimensions
Diameter (D): 175mm
Spacing (H): 110mm
Creepage Distance: 190mm
Coupling Size: 11mm

Glass Standard Profile Suspension Insulators LXP-40 / U40B

Mechanical Values
Mechanical Failing Load: 40kN
Tension Proof: 20kN

Electrical Values
Dry Power-frequency Withstand Voltage: 55kV
Wet Power-frequency Withstand Voltage: 33kV
Dry Lightning Impulse Withstand Voltage: 70kV
Puncture Withstand Voltage: 130kV

Radio Influence Voltage Data
Test Voltage RMS to Ground: 10kV
Maximum RIV at 1000 kHz: 50μV

Packing and Shipping Data
Net Weight, Approximate: 1.8kg
