Mechanical Values
Cantilever Strength: 2,800Pounds(12.5kN)
Electrical Values
Type Application Voltage: 35kV
Low Frequency Dry Flashover Voltage: 110kV
Low Frequency Wet Flashover Voltage: 85kV
Critical Impulse Flashover Votage Positive: 180kV
Critical Impulse Flashover Votage Negative: 205kV
Radio Influence Voltage Data
Test Voltage RMS to Ground: 22kV
Maximum RIV at 1000 kHz: 100μV

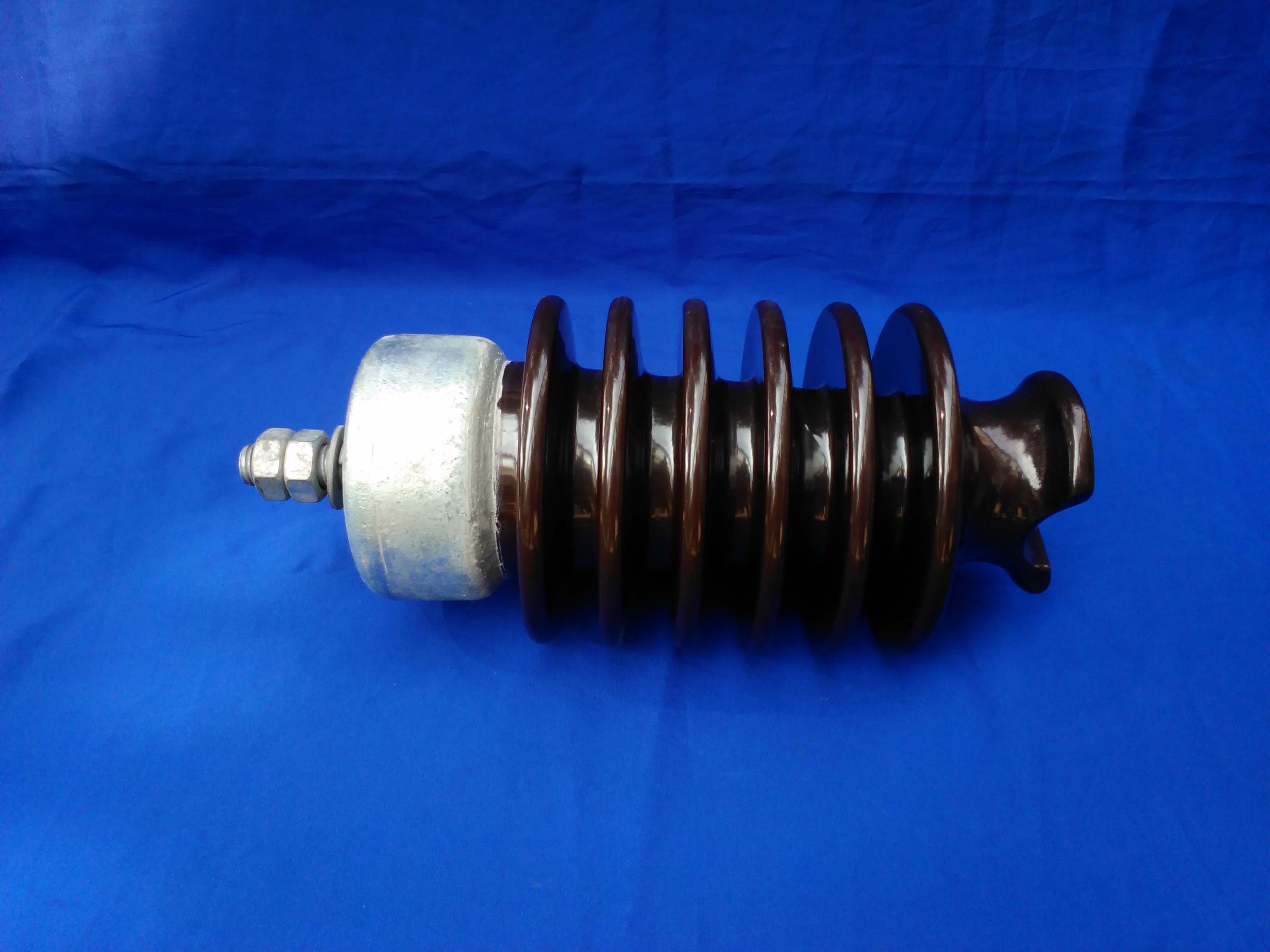

Line Post Insulators ANSI 57-2
Send InquiryAvailable Colors : Grey, Brown
Dimensions
Diameter (D): 6Inches(152mm)
Height (H): 12Inches(305mm)
Leakage Distance: 22Inches(559mm)
Dry Arcing Distance: 9 1/2Inches(241mm)
Net Weight Each: 18Pounds (8.16kg)
