Mechanical Values
Cantilever Strength: 2,800Pounds(12.5kN)
Electrical Values
Type Application Voltage: 45kV
Low Frequency Dry Flashover Voltage: 125kV
Low Frequency Wet Flashover Voltage: 10kV
Critical Impulse Flashover Votage Positive: 210kV
Critical Impulse Flashover Votage Negative: 260kV
Radio Influence Voltage Data
Test Voltage RMS to Ground: 30kV
Maximum RIV at 1000 kHz: 200μV

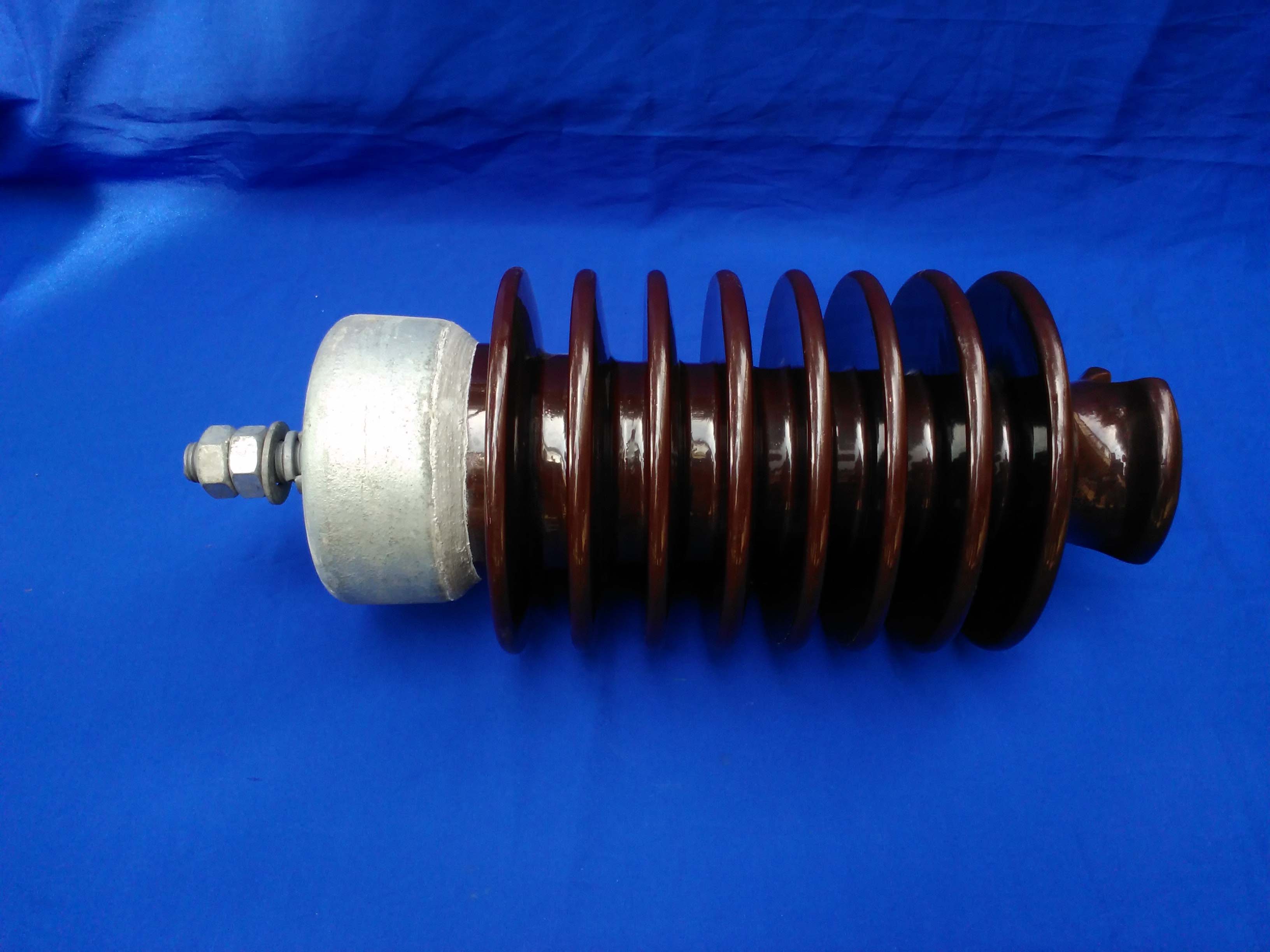

Line Post Insulators ANSI 57-3
Send InquiryDimensions
Diameter (D): 6 1/2Inches(165mm)
Height (H): 15Inches(381mm)
Leakage Distance: 29Inches(737mm)
Dry Arcing Distance: 12 1/4Inches(311mm)
Net Weight Each: 24 1/2Pounds (11.1kg)
