Mechanical Values
Cantilever Strength: 3,000Pounds (13.6kN)
Electrical Values
Typical Application Voltage: 34.5kV
Low-frequency Dry Flashover Voltage: 125kV
Low-frequency Wet Flashover Voltage: 80kV
Critical Impulse Flashover Voltage, Positive: 200kV
Critical Impulse Flashover Voltage, Negative: 265kV
Low-frequency Puncture Voltage: 165kV
Radio Influence Voltage Data
RIV Test Voltage to Ground: 30kV
Maximum RIV at 1,000kHz: 200μV

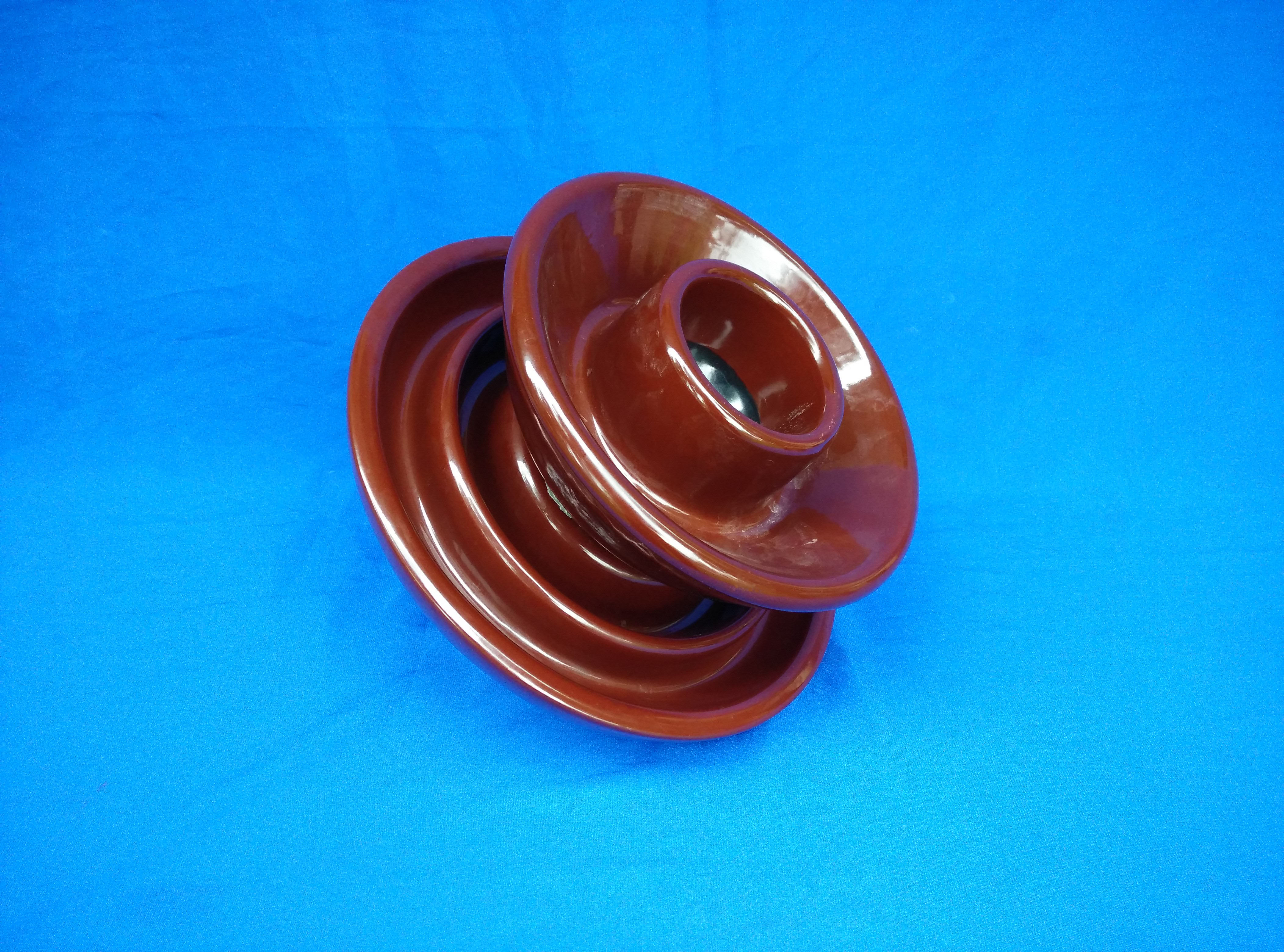

Pin Type Insulators ANSI 56-3
Send InquiryAvailable Colors : Grey, Brown
Dimensions
Diameter (D): 10 1/2Inches(267mm)
Height (H): 7 1/2Inches(191mm)
Leakage Distance: 21Inches(533mm)
Dry Arcing Distance: 9 1/2Inches(241mm)
Minimum Pin Height: 8Inches(203mm)
Net Weight Each: 17Pounds (7.7kg)
