Mechanical Values
Transverse Strength: 3,000Pounds (13.6kN)
Electrical Values
Low-frequency Dry Flashover Voltage: 25kV
Low-frequency Wet Flashover Voltage, Vertical: 12kV
Low-frequency Wet Flashover Voltage, Horizontal: 15kV

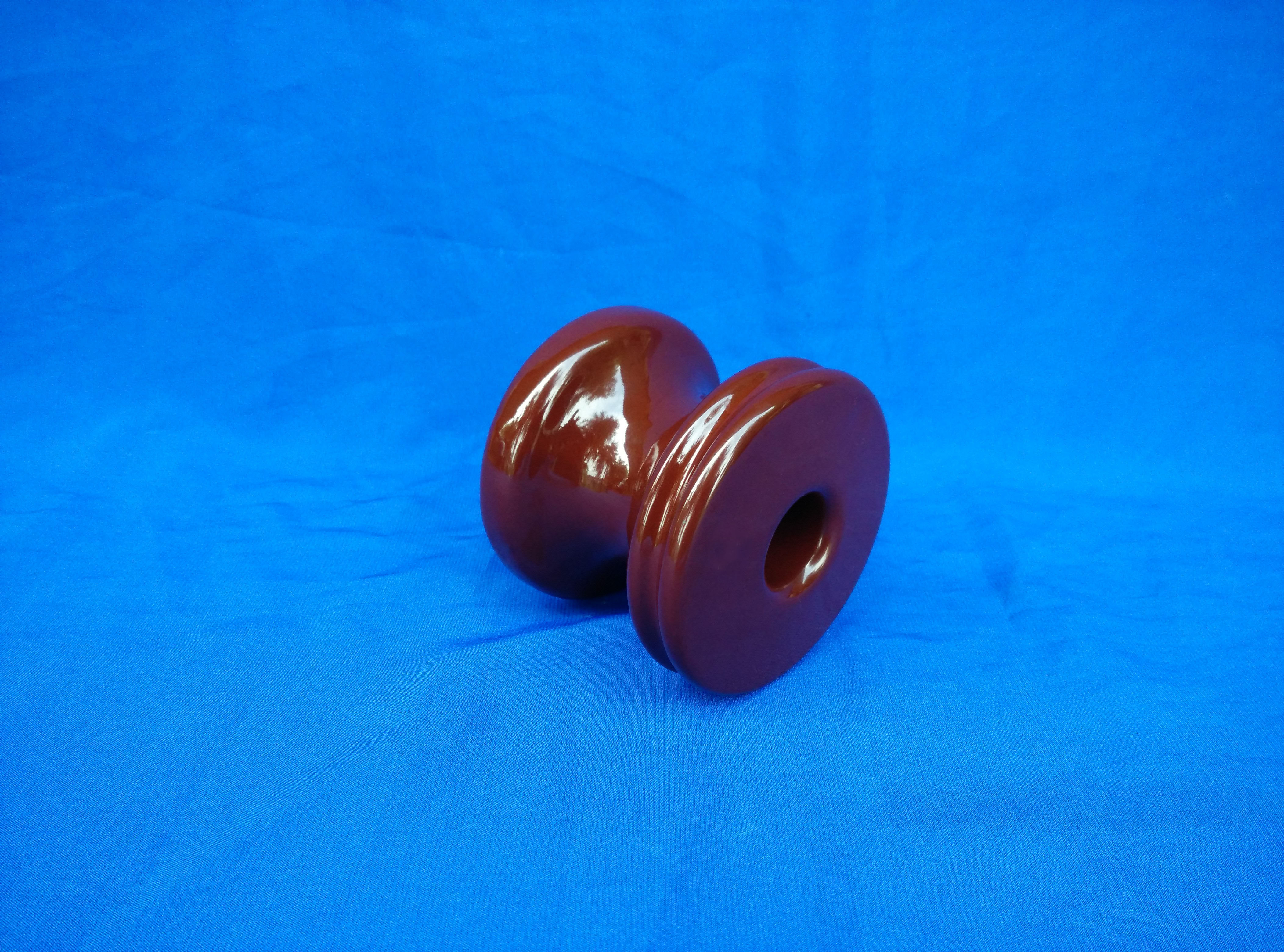

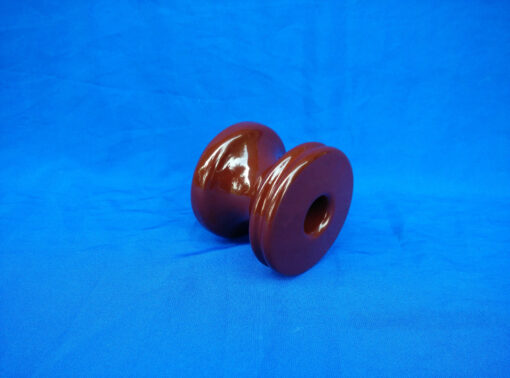

Spool Insulators ANSI 53-2
Send InquiryAvailable Colors : Grey, Brown
Dimensions
Diameter (D): 3 1/8Inches (79mm)
Spacing (H): 3Inches (76mm)
Net Weight Each: 1.1Pounds (0.5kg)
