Mechanical Values
Transverse Strength: 4,000Pounds (18.2kN)
Electrical Values
Low-frequency Dry Flashover Voltage: 25kV
Low-frequency Wet Flashover Voltage, Vertical: 12kV
Low-frequency Wet Flashover Voltage, Horizontal: 15kV

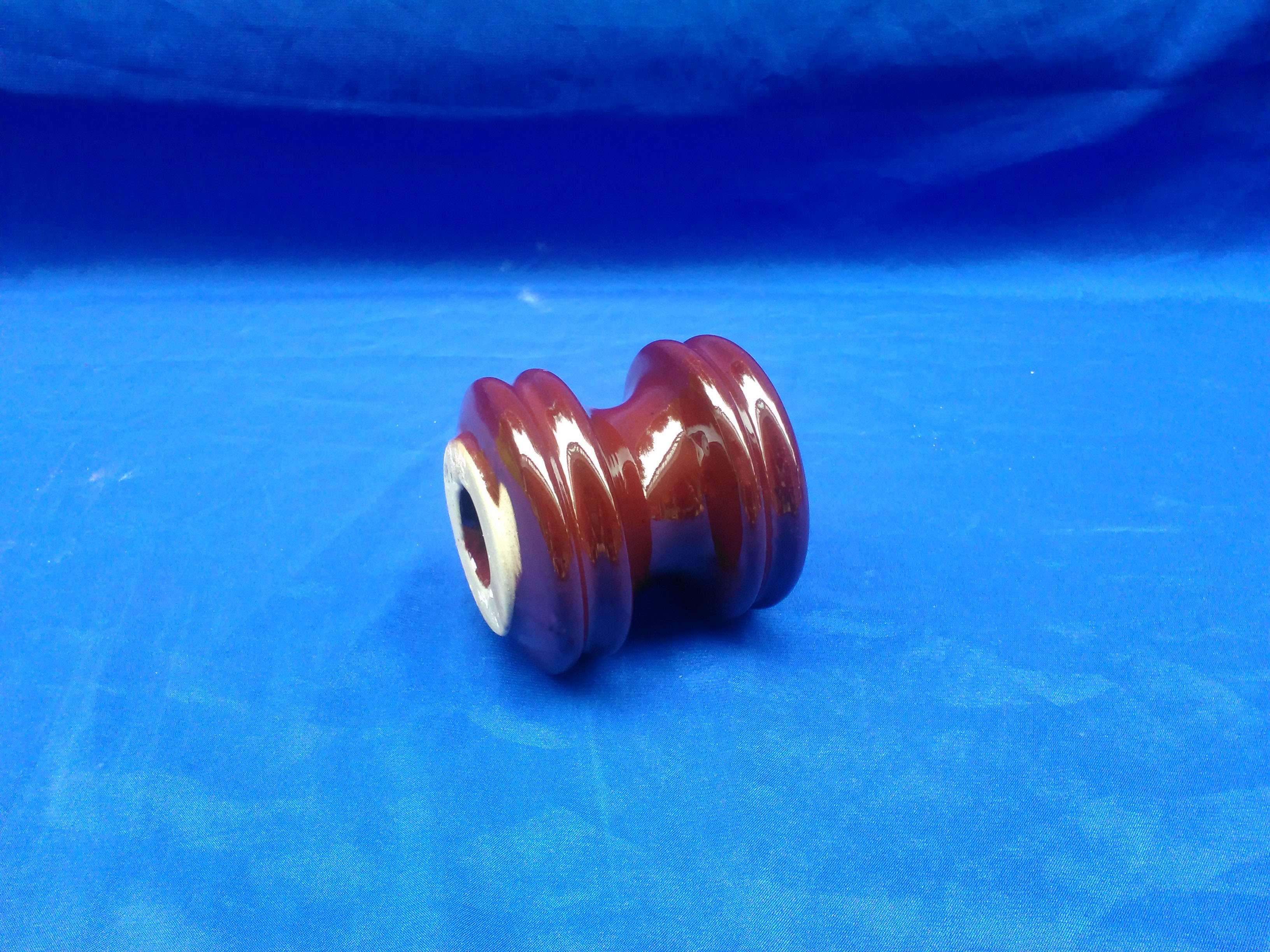

Spool Insulators ANSI 53-3
Send InquiryAvailable Colors : Grey, Brown
Dimensions
Diameter (D): 3Inches (76mm)
Spacing (H): 3 3/16Inches (81mm)
Net Weight Each: 1.2Pounds (0.55kg)
